Temperature Transmitter Electrical Specifications 5331D
Specifications range: -40°C to +85°C
Common Specifications:
Supply voltage, DC: 7.2 - 30 V
Voltage drop: 7.2 VDC
Isolation voltage, test/operation: 1.5 kVAC / 50 VAC
Communications interface: Loop Link
Signal/noise ratio: Minimum 60 dB
Signal dynamics, input: 20 bit
Signal dynamics, output: 16 bit
Accuracy, the greater of general and basic values:
General Values
Input Type |
Absolute Accuracy |
Temperature Coefficient |
All |
≤ ± 0.05% of span |
≤ ± 0.01% of span / °C |
Basic Values
Input Type |
Absolute Accuracy |
Temperature Coefficient |
RTD |
≤ ± 0.2°C |
≤ ± 0.01% °C / °C |
Lin. R |
≤ ± 0.1 Ω |
≤ ± 10 mΩ / °C |
Volt |
≤ ± 10 μV |
≤ ± 1 μV / °C |
TC Type:E, J, K, L, N, T, U |
≤ ± 1°C |
≤ ± 0.05°C / °C |
TC Type:B, R, S, W3, W5, L |
≤ ± 2°C |
≤ ± 0.2°C / °C |
EMC immunity influence: < ± 0.5% of span
Extended EMC immunity:
NAMUR NE 21, A criterion, burst: < ± 1% of span
Vibration: IEC 60068-2-6 Test FC
Lloyd's specification no. 1: 4 g / 2-100 Hz
Humidity: < 95% RH (non-cond.)
Dimensions: Ø 44 x 20.2 mm
Protection degree (encl. / terminal): IP68 / IP00

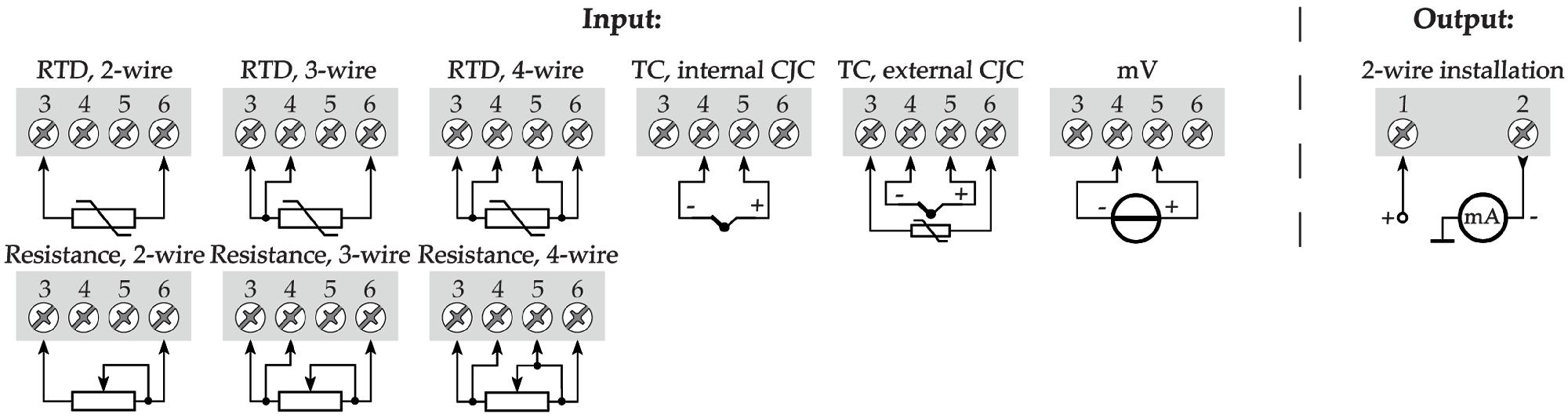

Electrical specifications, input:
Max. offset: 50% of select. max. value
TC Input
Type |
Min. Temp. |
Max. Temp. |
Min. Span |
Standard |
B |
+400°C |
+1820°C |
100°C |
IEC584 |
E |
-100°C |
+1000°C |
50°C |
IEC584 |
J |
-100°C |
+1200°C |
50°C |
IEC584 |
K |
-180°C |
+1372°C |
50°C |
IEC584 |
L |
-100°C |
+900°C |
50°C |
DIN 43710 |
N |
-180°C |
+1300°C |
50°C |
IEC584 |
R |
-50°C |
+1760°C |
100°C |
IEC584 |
S |
-50°C |
+1760°C |
100°C |
IEC584 |
T |
-200°C |
+400°C |
50°C |
IEC584 |
U |
-200°C |
+600°C |
50°C |
DIN 43710 |
W3 |
0°C |
+2300°C |
100°C |
ASTM E988-90 |
W5 |
0°C |
+2300°C |
100°C |
ASTM E988-90 |
LR |
-200°C |
+800°C |
50°C |
GOST 3044-84 |
Cold junction compensation: < ± 1.0°C
RTD and Linear Resistance Input
RTD Type |
Min. Value |
Max. Value |
Min. Span |
Standard |
Pt100 |
-200°C |
+850°C |
25°C |
IEC 60751 |
Ni100 |
-60°C |
+250°C |
25°C |
DIN 43760 |
Lin. R |
0 Ω |
5000 Ω |
30 Ω |
--------------- |
Cable resistance per wire (max.): 5 Ω
Sensor current: Nom. 0.2 mA
Voltage input:
Measurement range: -12 - 800 mV
Min. span: 5 mV

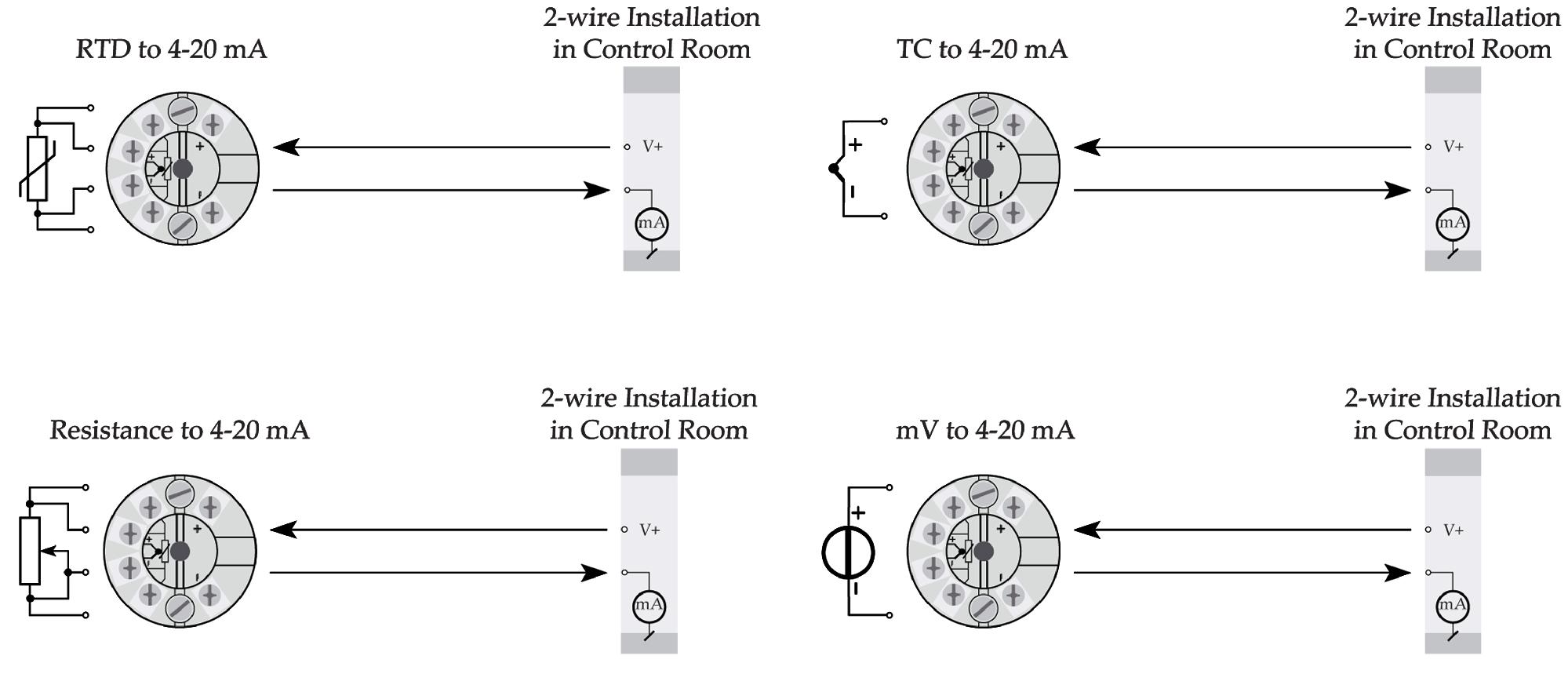

Current output:
Signal range: 4 - 20 mA
Min. signal range: 16 mA
Updating time: 440 ms
Load resistance: ≤ (Vsupply - 7.2) / 0.023 [Ω]
Sensor error detection:
Programmable: 3.5 - 23 mA
Ex / I.S. approval:
KEMA 06ATEX0062: II 1 G Ex ia IIC
T4 or T6
II 1 D Ex ia D
Max. ambient temp. for T1-T4: 85°C
Max. ambient temp. for T5 and T6: 60°C
ATEX, applicable in zone: 0, 1, 2, 20, 21 or 22
ATEX Installation Drawing No.: 5331QA01
FM, applicable in: IS, Class 1, Div. 1
Group A, B, C, D
Ex ia IIC
IS, Class 1, Zone 0
AEx ia IIC
FM Installation Drawing No.: 5300Q502
CSA, applicable in: IS, Class 1, Div. 1
Group A, B, C, D
Ex ia IIC
IS, Class 1, Zone 0
AEx ia IIC
CSA Installation Drawing No.: 533XQC03
Marine approval:
Det Norske Veriatas, Ships & Offshore. Stand. f. Certific. No. 2.4
GOST R approval:
VNIIM & VNIIFTRI, Cert. no.: www. prelectronics.com
Observed authority requirements: Standard:
EMC 2004/108/EC: EN 61326-1
ATEX 94/9/EC: EN 60079-0, -11, -26
EN61241-0, -11
FM: 3600, 3611, 3610
CSA, CAN / CSA: C22.2 No. 157,
E60079-11, UL 913
Of span = Of the presently selected range
