RTD with Fixed Bayonet

0.00
Contact Us Request a Quote

RB style straight run, 45° and 90° bend resistance temperature detector fixed bayonet sensors are available in a wide variety of sizes and styles.  Standard options include 304 stainless steel probe construction with flexible stainless steel cable lead wire protection.  Typical RTD temperature sensor probe applications include plastics, packaging, and other industrial sensing applications.

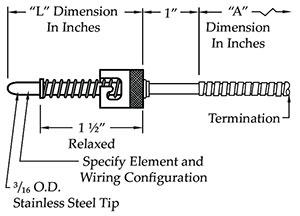

RTD Probe RB00 Style - Straight

RB00-Fixed-Bayonet-RTD

Part Number Configuration - Example:  RB00-GB-09F-022L4
RB00 - Element Type + Wiring Configuration -  "L" Dimension - "A" Dimension + Operating Temperature + Termination Type

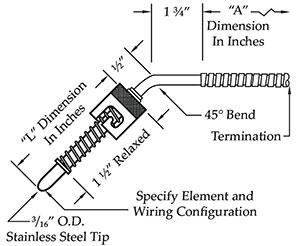

RTD Probe RB45 Style - 45° Bend

RB45-Fixed-Bayonet-RTD


Part Number Configuration - Example:  RB45-GB-09F-022L4
RB45 - Element Type + Wiring Configuration - "L" Dimension - "A" Dimension + Operating Temperature + Termination Type

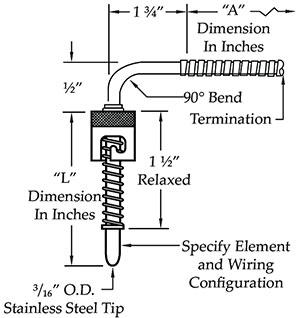

RTD Probe RB90 Style - 90° Bend


RB90-Fixed-Bayonet-RTD

Part Number Configuration - Example:  RB90-GB-09F-022L4
RB90 - Element Type + Wiring Configuration - "L" Dimension - "A" Dimension + Operating Temperature + Termination Type

RTD with Fixed Bayonet Specs & Options

Back to Top

Element Types

Element Type Code Element Type Description
A 100 ohm Platinum, Class B .00385 Coefficient
B 100 ohm Platinum, Class A .00385 Coefficient
E 1000 ohm Platinum, Class B .00385 Coefficient
G 100 ohm Platinum, Class B .00392 Coefficient



Wiring Configurations

Wiring Configuration Code Wiring Configuration Description
A Single, 2 Wire
B Single, 3 Wire
C Single, 4 Wire
D Double, 4 Wire



Dimensional Chart

"L" Dimensions "B" Dimensions "A" Dimensions Fractional Dimension
Letter Codes
“L” dimensions are specified in whole inches and a single alpha character which represents a fraction. Enter the three digit code as follows: “B” dimensions are specified in fractions from ⅛” to 1”. Use the single alpha character to indicate the tip length. Enter the code as follows: “A” dimensions are
specified in whole inches only. Enter the three digit code as follows:		 1/16" S 11/16" L
1/8" B 3/4" M
3/16" C 13/16" N
1/4" D 7/8" P
5/16" E 15/16" R
3" 030 10 5/8" 10K 3/8" F 1" S
4 1/2" 04H 12" 120 1/8" B 5/8" K 9" 009 7/16" G 0 No
6 1/4" 06D 15 3/8" 15F 1/4" D 3/4" M 12" 012 1/2" H
7 7/8" 07P 17 3/4" 17M 3/8" F 7/8" P 36" 036 9/16" J
9 5/8" 09K 22 1/8" 22B 1/2" H 1" S 144" 144 5/8" K



Operating Temperatures

Operating Temperature Code Operating Temperature Description
L 500°F (260°C)
M 900°F (482°C)



Termination Types

Termination Option Code Terminatin Description
0 2" Split Leads
1 #6 Spade Lugs
2 BX Connector with Lugs
3 Standard Cable Clamp Plug
4 Standard Cable Clamp Jack

Custom Options Available - Contact us for Engineering Assistance.

RTD with Fixed Bayonet Downloads

Back to Top
Spec Sheet - RTDs-Fixed Bayonet 0115-200KB
Resistance Temperature Detectors Catalog - 0115-2MB
Temperature Sensors Catalog - 0115-4MB
Techincal Data - RTD General Specifications 0115-250KB
Temperature Sensor Element Selection Guide - 200KB
