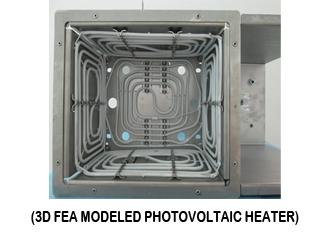

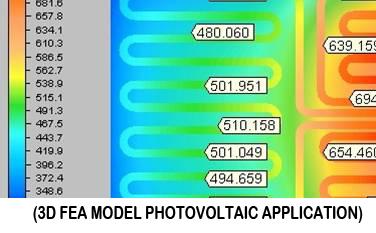

Electric Heaters For Photovoltaic Processing EquipmentA manufacturer of thin film photovoltaic technology was experiencing frequent heater failures in their chemical vapor deposition equipment.The solution started in Durex’ metrology lab where we analyzed failed tubular heaters and determined their failure mode. The heater failures resulted from a combination of heater design, material, and environment. Knowing the failure mode was the first step. Designing an electric heater solution that would withstand this difficult environment was challenging. Durex used our 3-D Finite Element Analysis (FEA) software to model a heater circuit that would eliminate hot spots that were contributing to heater failure. As a result of our metrology and failure analysis, the heater element sheath material was changed to a high-grade alloy with a special oxide coating applied to the electric heater wall to help withstand the chemical environment. In combination, Durex’ heater design improvements dramatically extended heater life and reduced costly maintenance. Learn more about our electric heating solutions. Give us the opportunity to help you with all your heating and sensing requirements, contact us or request quote today! Durex Industries designs, engineers & manufactures electric heaters, process heating systems, temperature sensors and temperature controls. |
